C-Lift Mantis
When self-sufficiency and operational agility matter most, the Mantis equips you to lift and place containers wherever the mission requires - without waiting for heavy gear.
No Power, No Heavy Handling Equipment Needed
From main operating bases to austere forward positions, it's not practical to support every location with cranes, RTCH, PLS or contractors.

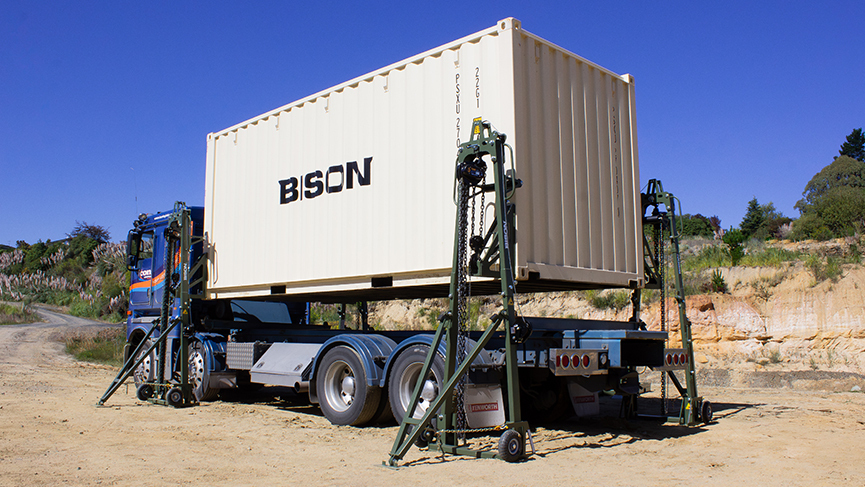

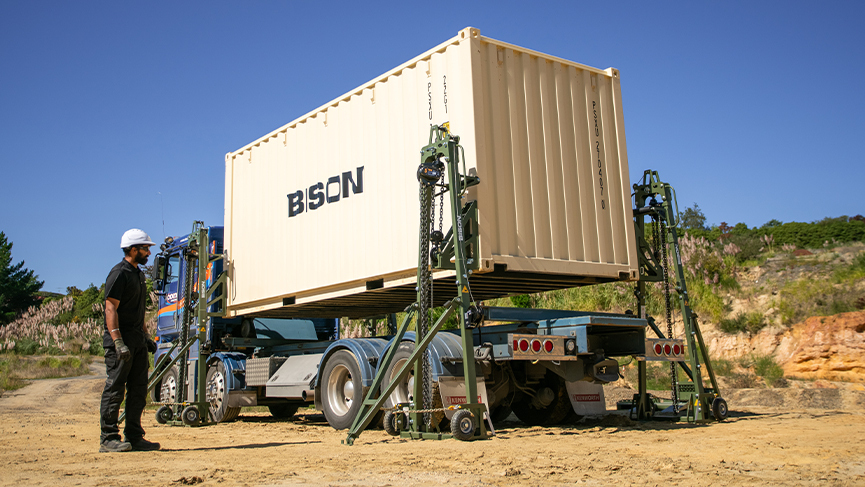

The Bison Mantis fills this gap, giving you the ability to lift and move ISO containers in more places, with no heavy equipment or contractor support.

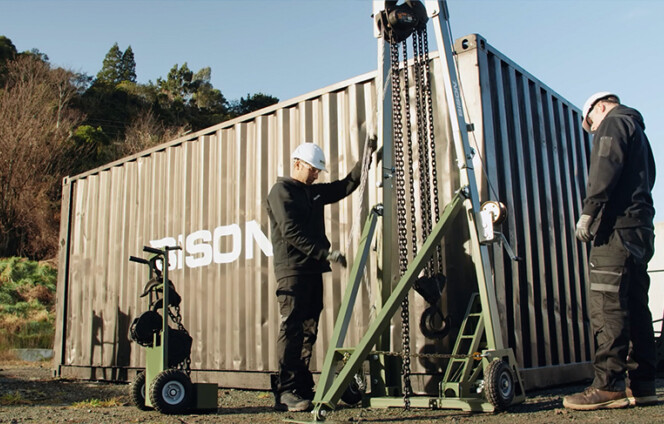

Putting You In Control
Operational Agility
Lift Containers, Anywhere, Anytime
Keep Operations Moving
Operate in Remote Locations
Maximize Use of Existing Facilities
Mantis
-
Ready to Deploy

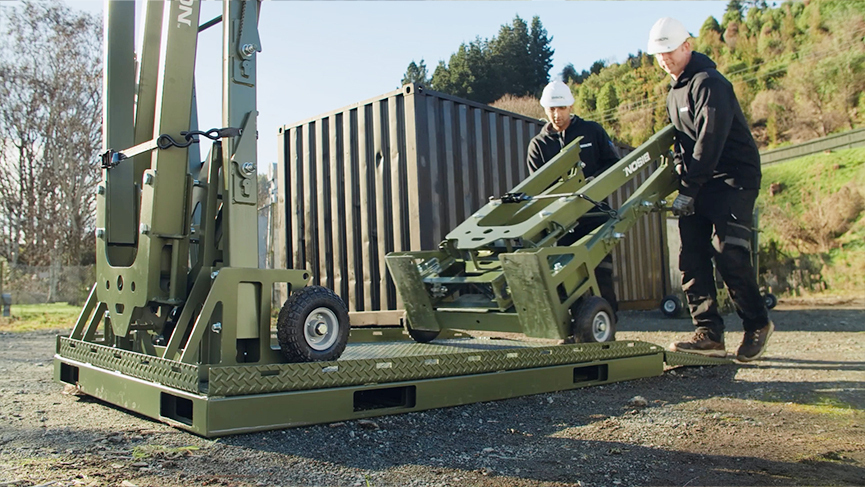

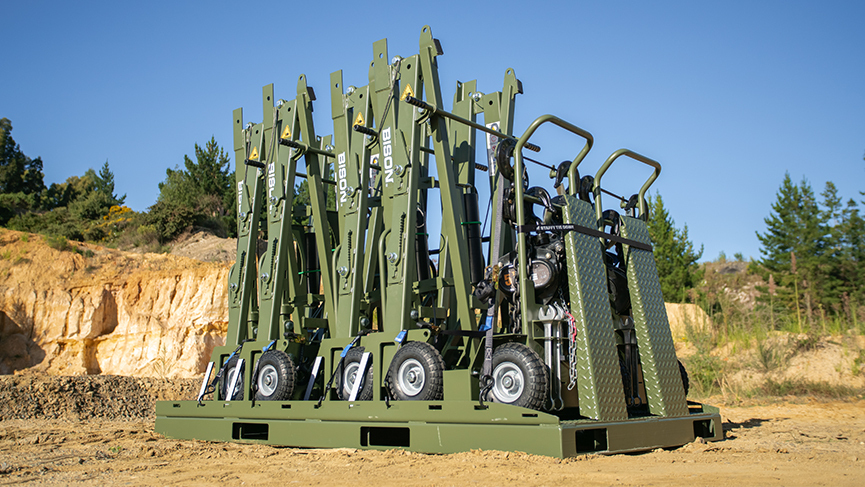

The complete Mantis system packs down neatly on a skid that fits inside a quadcon container, making it easy to transport by air, sea, or land.
-
Safe & Ergonomic Operation

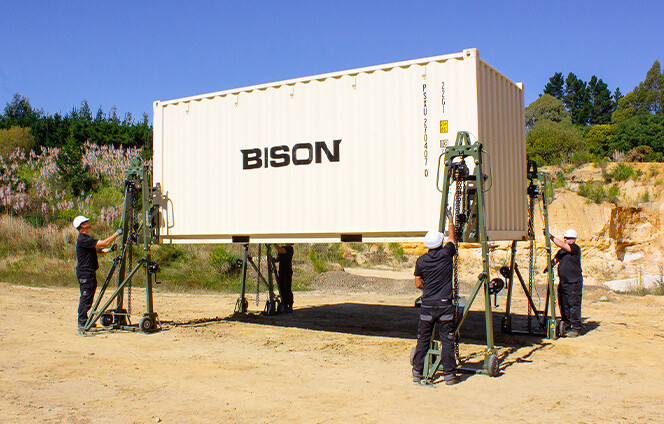

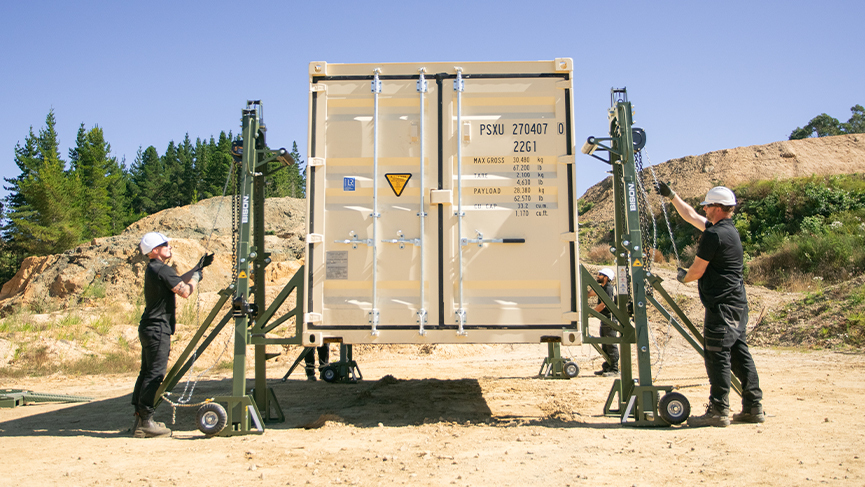

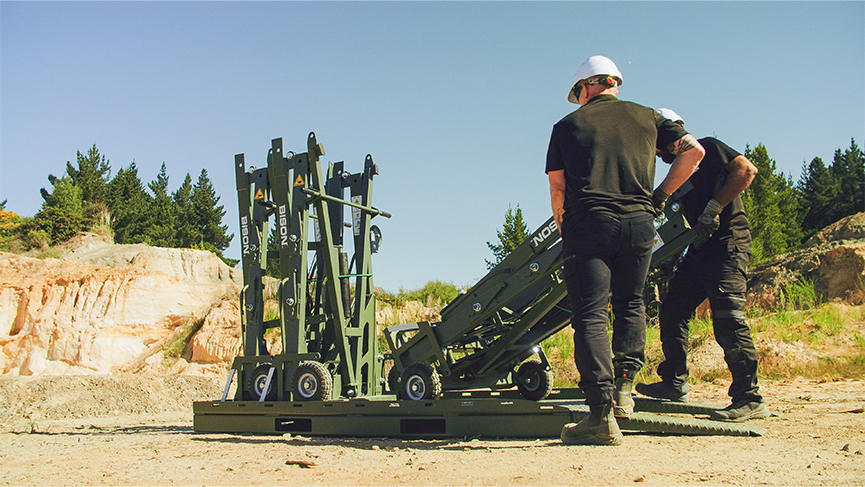

The hoists roll straight off the skid, requiring no additional handling equipment. A dedicated rigging kit supports safe manual assembly, and the fully mechanical system is intuitive to use. Operation requires as few as two people, keeping teams lean and efficient.
-
Works Safely on Rough & Uneven Ground

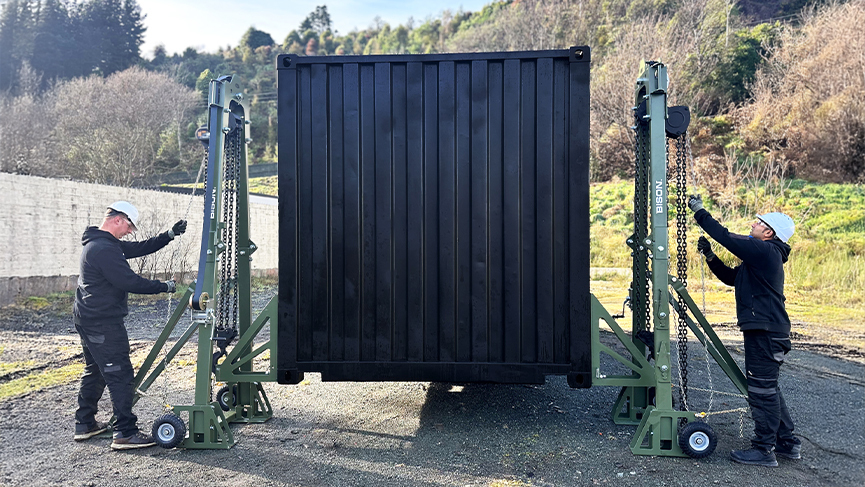

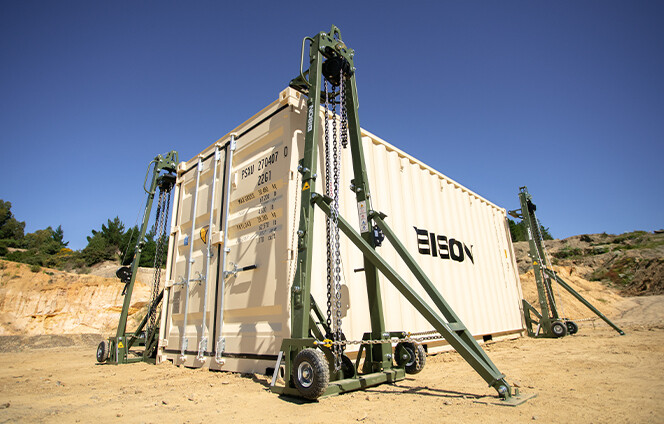

The safe and sturdy tripod design provides a stable lifting base on any firm surface, including on rough and uneven ground.
-

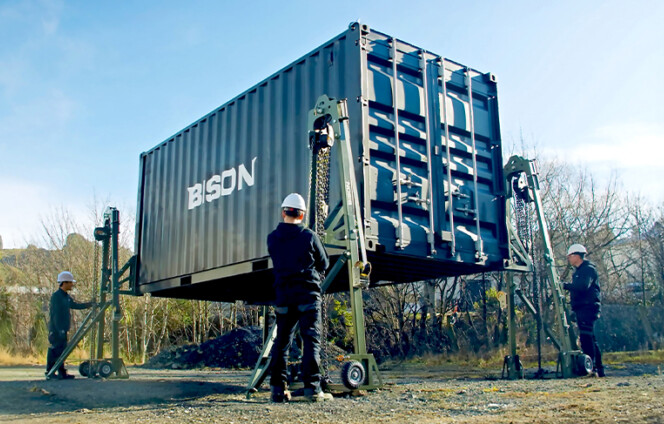

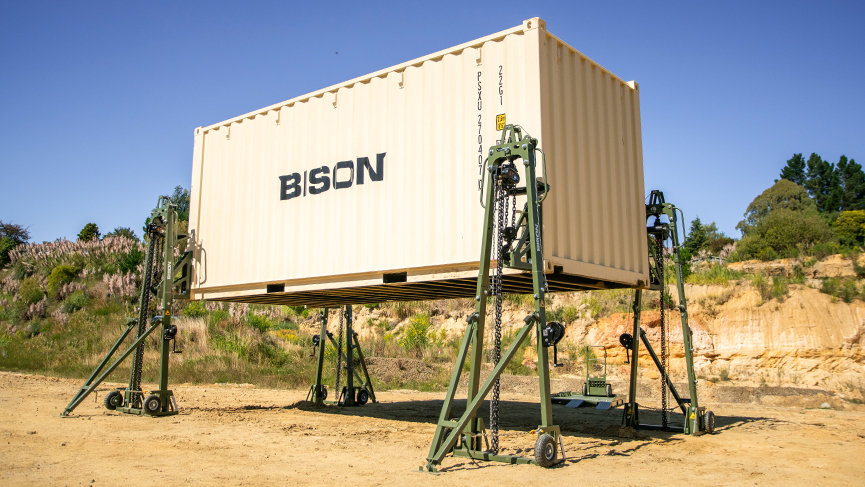

Heavy Lift Capability
The Mantis delivers a lifting capacity of 44,000 lb (20,000 kg) and raises containers up to 74 inches (188 cm). It is compatible with all ISO container sizes and is built to operate in temperatures ranging from -10°C to +50°C (14°F to 122°F), with a low-temperature upgrade available.
-

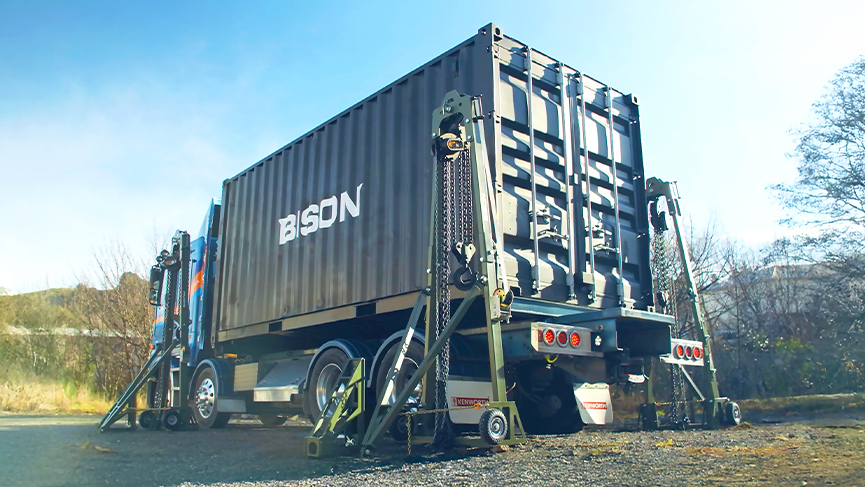

Rugged Design
Engineered with a simple yet robust mechanical system and protected by military-grade coatings, the Mantis is designed to withstand demanding environments. It remains stable on uneven terrain, complies with BS EN 1494:2000+A1:2008, and is backed by a five-year structural warranty.
| Models | Mantis 10 | Mantis 20 | Mantis 10 | Mantis 20 |
| Lift Capacity Total | 22,000 lb | 44,000 lb | 10,000 kg | 20,000 kg |
| Lift Capacity Per Leg | 11,000 lb | 22,000 lb | 5,000 kg | 10,000 kg |
| Lift Height | 74 in | 70 in | 188 cm | 178 cm |
| Chain Hoist Weight | 96 lb | 175 lb | 43 kg | 80 kg |
| System Weight | 2970 lb | 3290 lb | 1350 kg | 1495 kg |
| Frame Weight | 376 lb | 167 kg | ||
| Reversing Clearance | 20 in | 50 cm | ||
| Operating Temperature | 14°F to 122°F Upgrade chain hoist to reduce the high / low temp limit | -10°C to +50°C Upgrade chain hoist to reduce the high / low temp limit | ||
| Minimum Operators | Two | Two | ||
| Construction | Protected by high-quality epoxy paint coating, the Mantis is designed to withstand demanding environments. Puncture proof rubber tyres for portability once assembled. Each leg is factory proof tested to 150% x rated load. | Protected by high-quality epoxy paint coating, the Mantis is designed to withstand demanding environments. Puncture proof rubber tyres for portability once assembled. Each leg is factory proof tested to 150% x rated load. | ||
| Design Standard | The Mantis is CE compliant and designed in accordance with BS EN 1494:2000+A1:2008, the British Standard for mobile or moveable jacks. | The Mantis is CE compliant and designed in accordance with BS EN 1494:2000+A1:2008, the British Standard for mobile or moveable jacks. | ||
Proud Supplier To
US Forces & NATO Allies
Trusted to perform
Bison combines first-class engineering, industrial strength components and rigorous manufacturing, to deliver quality equipment you can trust to perform in the toughest conditions.
Putting you in control
With Bison, you'll get more self-sufficiency and control over your operations, and the freedom to lift, weigh and move containers without relying on contract cranes, truck scales and heavy handling equipment.

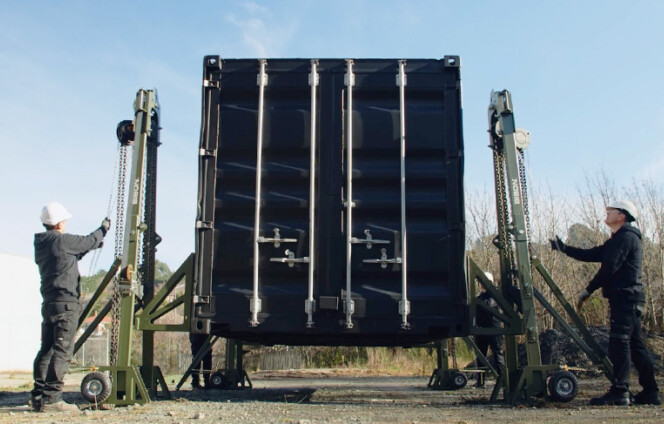

From solutions to support
Working with Bison means exceptional service at every touch point, from our multi-lingual sales team, to our comprehensive training and global support network.
Frequently Asked Questions
-
What is the lift capacity of the Bison Mantis?
The Bison Mantis has a lift capacity of up to 20,000 kg (44,000 lb). It is designed to safely lift and transfer loaded ISO shipping containers in remote, off-grid, and expeditionary environments without requiring cranes, forklifts, or external power.
-
How does the Bison Mantis work?
The Bison Mantis attaches directly to the ISO container corner castings and uses a manual lifting mechanism to raise the container. Its modular design allows it to be transported, assembled, and deployed in locations where traditional container handling equipment cannot operate.
-
What types of containers can the Bison Mantis lift?
The Bison Mantis is designed to lift standard ISO shipping containers, including 10ft, 20ft, and 40ft containers, as well as military container systems such as Tricons, Bicons, and Quadcons. It can also lift a wide range of modified shipping containers and containerized equipment, provided they have accessible ISO corner castings and are within the system's rated lifting capacity.
-
How many people are required to operate the Bison Mantis?
The Bison Mantis is designed to be operated by a small team, typically between two and four people, depending on the application and operational requirements. This enables organizations to handle containers without relying on large lifting crews or specialist equipment operators.
-
Is the Bison Mantis suitable for military and humanitarian operations?
Yes. The Bison Mantis is designed for defence logistics, expeditionary operations, humanitarian aid, disaster response, mining, and remote infrastructure projects. Because it requires no external power source, it is well suited to austere environments where heavy lifting equipment is unavailable.
-
What applications is the Bison Mantis best suited to?
The Bison Mantis is designed for organizations that need to lift and transfer shipping containers in locations where cranes, forklifts, and other heavy handling equipment are unavailable or impractical. It is commonly used in military logistics, disaster response, humanitarian aid, mining, construction, and remote industrial operations.
