Self Lifting Container Legs
C-Lift T Series

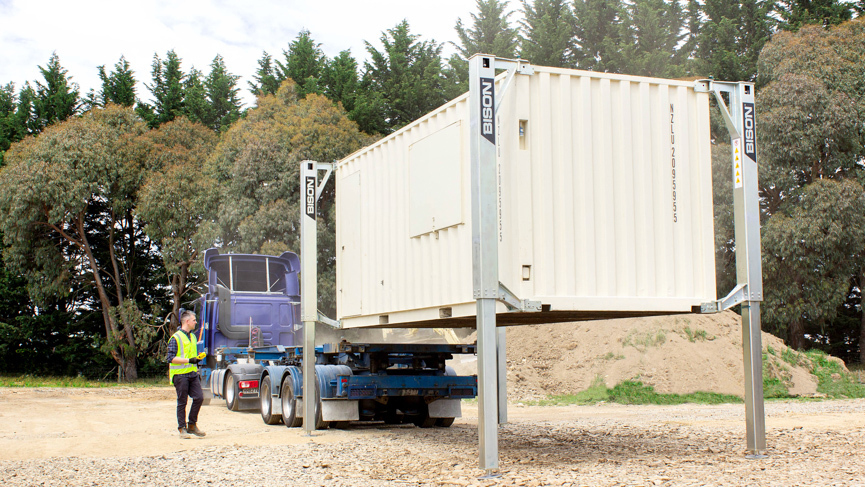

Give your containers legs, and your team self-sufficiency with the Bison C-Lift T Series, a modular container lift system that retrofits to a variety of ISO containers.
Mobilize Your Containers
For total independence, the C-Lift T Series equips you to rapidly deploy valuable containerized assets, without the costs, delays, and downtime that come from relying on third-party vendors.
With lift capacities of up to 30 tonne or 66,000 lbs, the T Series is an ideal solution for defense applications, field services, emergency response, event logistics, and containerized energy.
Putting You in Control

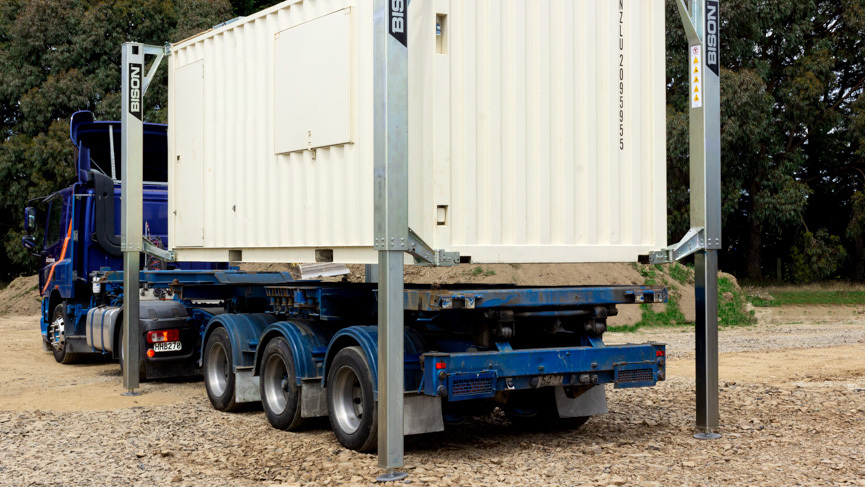

Mobilize Containers
Make Containers Self Sufficient
Eliminate Crane Hire
Avoid Delays And Downtime
Lower Transport Costs
C-Lift T Series
-

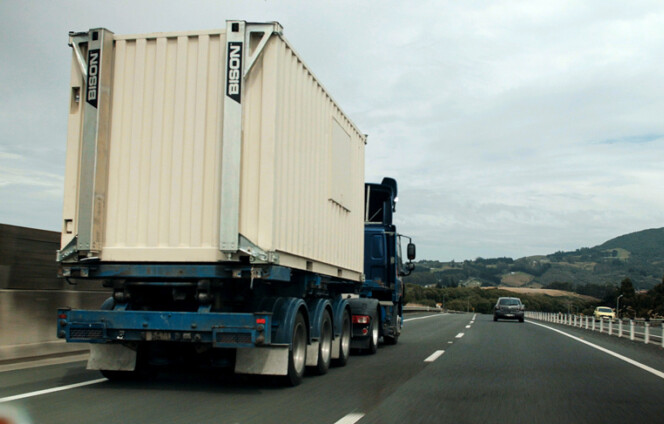

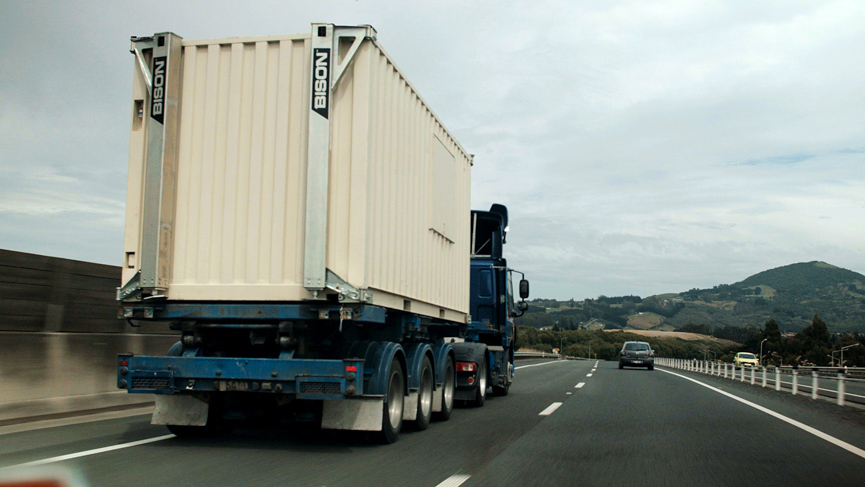

Legs Travel With The Container
The legs stow safely at the front and rear of the container during transport, staying inside regular vehicle width limits.
-

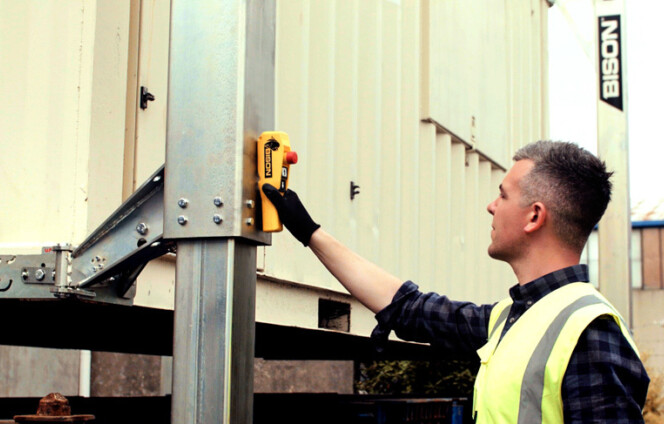

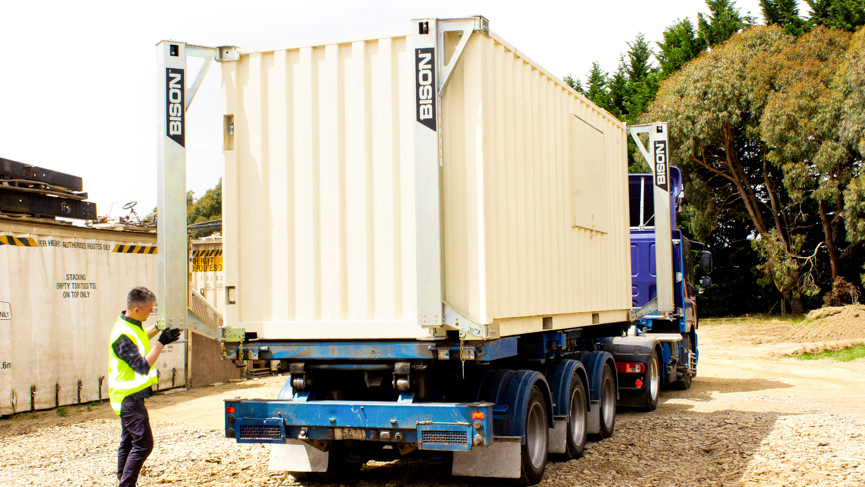

Quick and Easy to Deploy
To deploy, the legs are simply swung into position and locked in place with a two-bolt brace. The lift is controlled by a wireless handheld remote.
-
Self levelling control system
Onboard sensors control the pumps and motors, keeping the container level and each leg synchronized. The default mode is self-leveling, however, the operator can select and control individual legs, or groups of legs, if required.
-

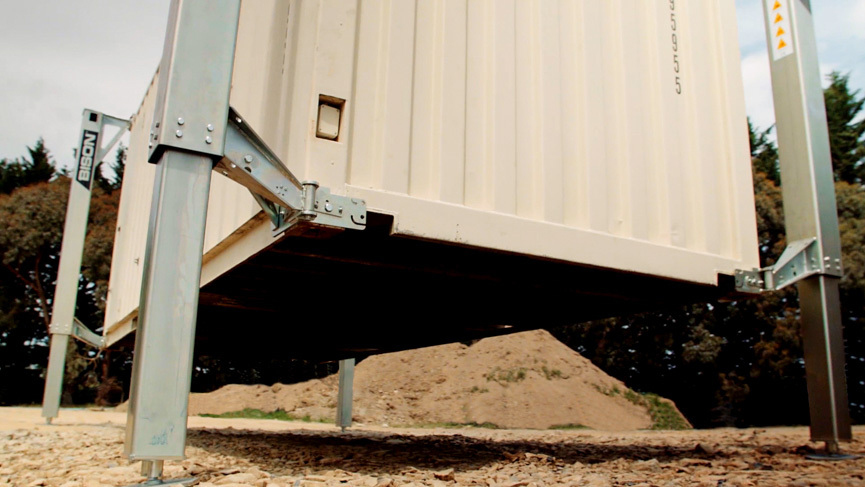

Works on uneven ground
An articulating footplate gives the T Series a stable base for lifting containers on rough, loose, and uneven surfaces.
-
Lift capacity up to 30 tonne | 66,000 lbs
The T Series is available in two lift capacities. The C-Lift T20 with 20 tonne | 44,000 lbs working load limit. And the C-Lift T30 with a 30 tonne | 66,000 lbs working load limit.
-
Legs Bolt To Corner Castings

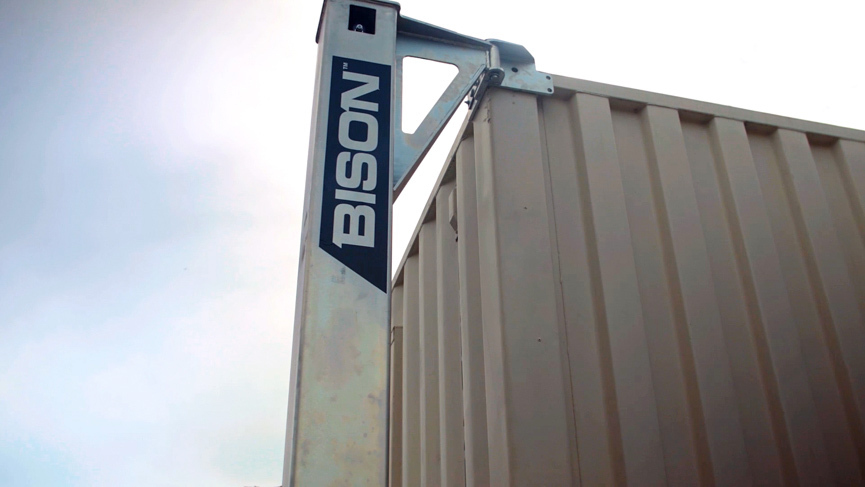

The four telescopic lifting legs bolt securely to the ISO corner castings, without modifying the container structure. The legs can be detached and transferred quickly and easily between containers.
C-Lift T Series
-
Hydraulic Counterbalance Valves
Hydraulic counterbalance valves ensure the container will stay elevated in the event of an unexpected power outage or hydraulic failure.
-

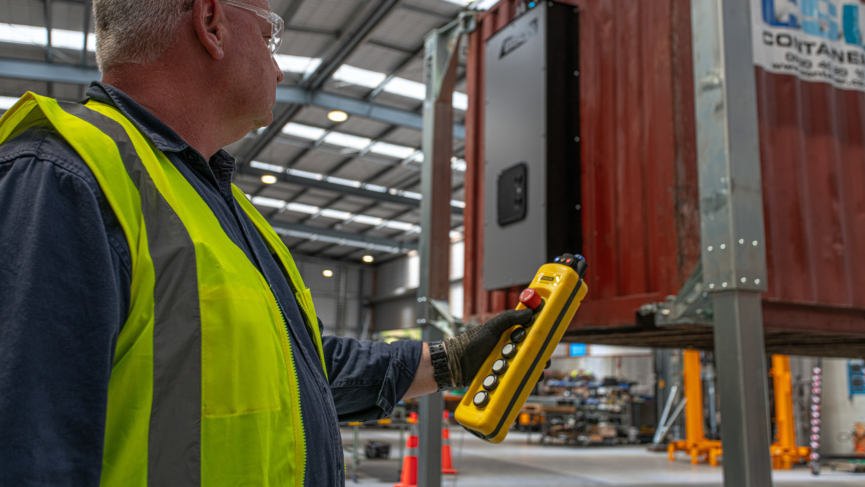

Wireless Remote
A wireless handheld remote control allows the operator to move freely, monitor each lift, and remain a safe distance from the elevated container.
-

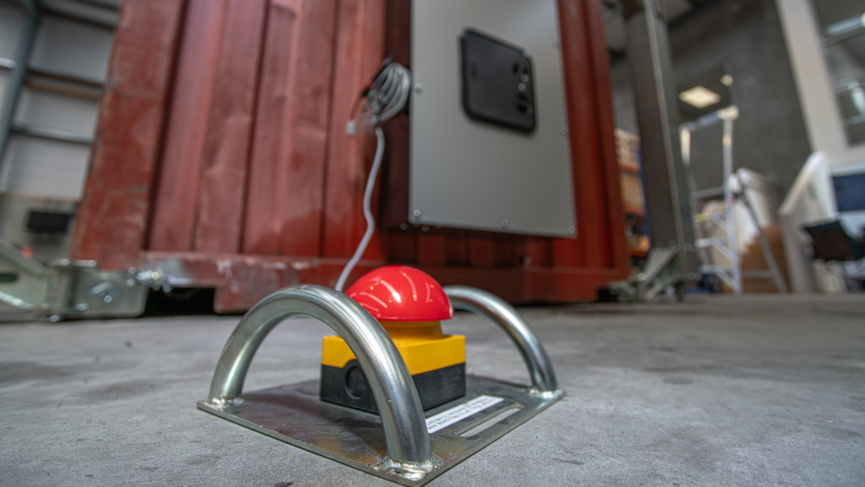

Emergency Stops
An emergency stop button on the remote will stop the T Series on demand. A second hardwired emergency stop button can be positioned on the ground, a safe distance from the elevated container.
-
Safety rated control system
A safety rated control system, with dual channel redundancy, controls the pumps and motors, keeping the container level and each leg synchronized.
-
Quality Construction
The T Series legs are constructed from high-strength structural steel and are physically proof tested to 150% times their working load limit before shipping.
| Models | C-Lift T20 | C-Lift T30 | C-Lift T20 | C-Lift T30 |
| Lift Capacity | 44,000 lbs | 66,000 lbs | 20,000 kg | 30,000 kg |
| Lift Height | 65 in | 165 cm | ||
| Reversing Clearance | 20 in | 50 cm | ||
| Leg Weight | 480 lb | 572 lbs | 220 kg | 260 kg |
| Operating Temperature | 14°F to 104°F | -10°C to +40°C | ||
| IP Rating | Portable HPU IP54. Mounted HPU IP56. | Portable HPU IP54. Mounted HPU IP56. | ||
| Standard Power Supply | External electric supply, from portable generator or mains. 207 - 240 VAC, 50 - 60 Hz, 10 - 15 Amps | External electric supply, from portable generator or mains. 207 - 240 VAC, 50 - 60 Hz, 10 - 15 Amps | ||
| Alternative Power Supply | Built in 24V DC rechargeable battery pack. Only available with T20 Mounted HPU. Charge with 110V - 240V, 50 - 60 Hz, 10 - 15 Amps. | Built in 24V DC rechargeable battery pack. Only available with T20 Mounted HPU. Charge with 110V - 240V, 50 - 60 Hz, 10 - 15 Amps. | ||
| Construction | High strength structural steel. Each leg is factory proof tested to 150% x rated load. Off the shelf hydraulics, for easy servicing. Zinc-plated exterior, for long life cycle. | High strength structural steel. Each leg is factory proof tested to 150% x rated load. Off the shelf hydraulics, for easy servicing. Zinc-plated exterior, for long life cycle. | ||
| Design Standard | CE compliant and designed in accordance with BS EN 1494:2000+A1:2008, the British Standard for mobile or moveable jacks. | CE compliant and designed in accordance with BS EN 1494:2000+A1:2008, the British Standard for mobile or moveable jacks. | ||
Dedicated Support
Bison engineers stand ready to support your team and technicians. This support is enhanced by remote diagnostic capabilities built into all automated C-Lift T Series. Using a smartphone app, your team can connect Bison engineers to your C-Lift T Series, allowing us to investigate issues if they arise, reset the firmware, and provide expert advice at low or no cost, no matter where you are in the world.
Comprehensive Training
With every C-Lift T Series, you'll receive a series of detailed Training Videos - covering safety, key components, how to set the T Series up, safe operation, and reversing safety. Each video is accompanied by a short online test, so that you can train, test, and certify your T Series operators, and take confidence knowing they are familiar with the equipment and how to use it safely.
5 Year Limited Warranty
All Bison C-Lift T Series are covered by a 5-year limited warranty on structural components, and a 1-year limited warranty on other components. Our product development and production processes combine first-class engineering, industrial-strength components, and rigorous manufacturing, to deliver quality equipment you can trust to perform in the toughest conditions.
Hydraulic Power Unit
Multiple Options
No two modified containers are the same, so we offer multiple hydraulic power pack options to fit with your container design. The HPU may be mounted on the roof, the internal or external walls. Or you may prefer a portable HPU to sit alongside the container. Talk with our team to learn more.
